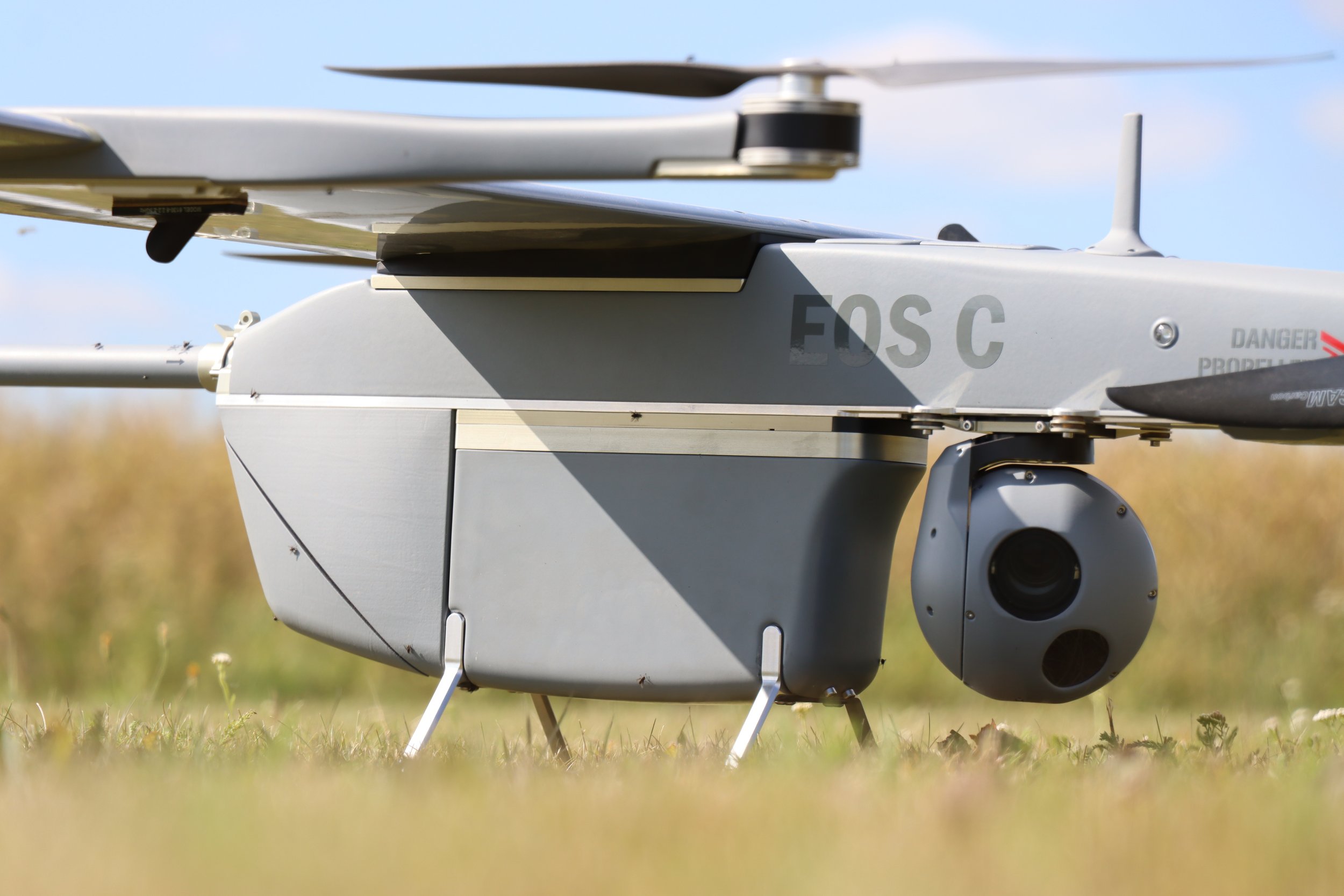

eOPIC-5
Key features
At 1.1kg / 2.4lbs the eOPIC-5 is the lightest 2 sensor gimbal with onboard INS on the market.
Unrivaled accuracy comparable with much larger gimbals.
Outstanding stabilization <75µrad
A completely plug & play solution for Integrators due to: Onboard INS and Bespoke software written in-house
AI features in development – (See News for latest updates)
HDTV Continuous Zoom Color Camera
Sensor: 1/2.8 CMOS
Resolution: 1920 x 1080 pixels
Wavelength: Visible + NIR
Lens Aperture: F1.6-4.7
Focal Length: 4.3 mm - 129 mm
Lens Diameter: 37 mm
Field of View: HFOV 63.7° - 2.3°
Zoom Factor: 1-30X (continuous optical)
Digital Zoom: 1-3X (continuous digital)
Frame Rate: 30 Hz
Sensitivity (VIS): 0.01 lx @ 30 Hz, 0.0013 lx @ 4Hz
Sensitivity (NIR): 0.0015 lx @ 30Hz, 0.0008 lx @ 4Hz
DRI: Human: 14/6/2.5km. Vehicle/NATO: 22/12/6km
LWIR Fixed Focal Length Thermal Camera
Type: Uncooled long wave infrared sensor (LWIR)
Sensor: Uncooled VOx Microbolometer
Resolution: 640 x 512 pixels
Pixel Pitch: 12 μm
Spectral Range: Between 7 and 14 μm
Lens Aperture: F1.0
Focal Length: 24 mm
Field of View: HFOV 18°
Digital Zoom: 1-8X (continuous digital)
Frame Rate: 30 Hz
NETD: 40,50,60mK (options)
DRI: Human: 1280/360/160m. Vehicle/ NATO: 3850/950/295m
